12V120AH UPS Battery CPS Battery ECO Battery For Uninterruptible Power System

12V120AH UPS Battery CPS Battery ECO Battery For Uninterruptible Power System

Basic Info Model NO.: 12V120AH Usage: Electric Power, Lighting, Boat, Electric Bicycle, UPS Discharge Rate: High Discharge Rate Electrolyte: Acid Rechargeable: Chargeable Brand Name: GOLD LIGHT POWER Advantage 1: High Capacity, Good Quality Production Lead-Time: 15~30 Days After Deposit...

Product Details

Basic Info

Model NO.: 12V120AH

Usage: Electric Power, Lighting, Boat, Electric Bicycle, UPS

Discharge Rate: High Discharge Rate

Electrolyte: Acid

Rechargeable: Chargeable

Brand Name: GOLD LIGHT POWER

Advantage 1: High Capacity, Good Quality

Production Lead-Time: 15~30 Days After Deposit

Trademark: GOLD LIGHT POWER

Origin: Guangdon, China(Mainland)

Type: Lead-Acid Batteries

Nominal Voltage: 12V

Shape: Square Battery

Installation: Fixed

Color: Any Color The Customer Needs

Quality Standard: ISO9000, CE, RoHS, MSDS, Soncap, Coc/Voc, IEC Test

Advantage 2: High Performance, with Low Price

Packing Quantity: 1PCS/Box

Specification: CE\RoHS\COC\VOC\SONCAP

HS Code: 8507200000



Product Description
12V 120ah sealed lead acid AGM vrla battery

Storage and installation:

1.Gold Light Power battery is not in use should remove the cable, pole jacket cover and wipe clean;

2.once every three months for Gold Light Power battery to maintain charging, constant voltage charging method for limiting law, the initial charging current is 0.1CA, the charging voltage is 2.4V / single cell (25 ℃ when);
3.Gold Light Power battery should be stored in dry and ventilated place, away from direct sunlight and away from heat sources;
4.when handling batteries even force, the force of the housing portion of the battery to avoid damage to the pole;
5.the installation should use insulated tools to prevent click.



12V120AH UPS Battery CPS Battery ECO Battery For Uninterruptible Power System

SPECIFICATIONS

Cells Per Unit

6

Voltage Per Unit

12

Capacity

12V120AH@10hr-rate to 1.80V per cell @25ºC

Operating Temperature Range

Discharge: -20 ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC

Normal Operating Temperature Range

25ºC±5ºC

Float charging Voltage

13.6 to 13.8 VDC/unit Average at 25ºC

Equalization and Cycle Service

14.6 to 14.8 VDC/unit Average at 25ºC

Self Discharge

Batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.

Container Material

A.B.S. UL94-HB, UL94-V0 Optional.

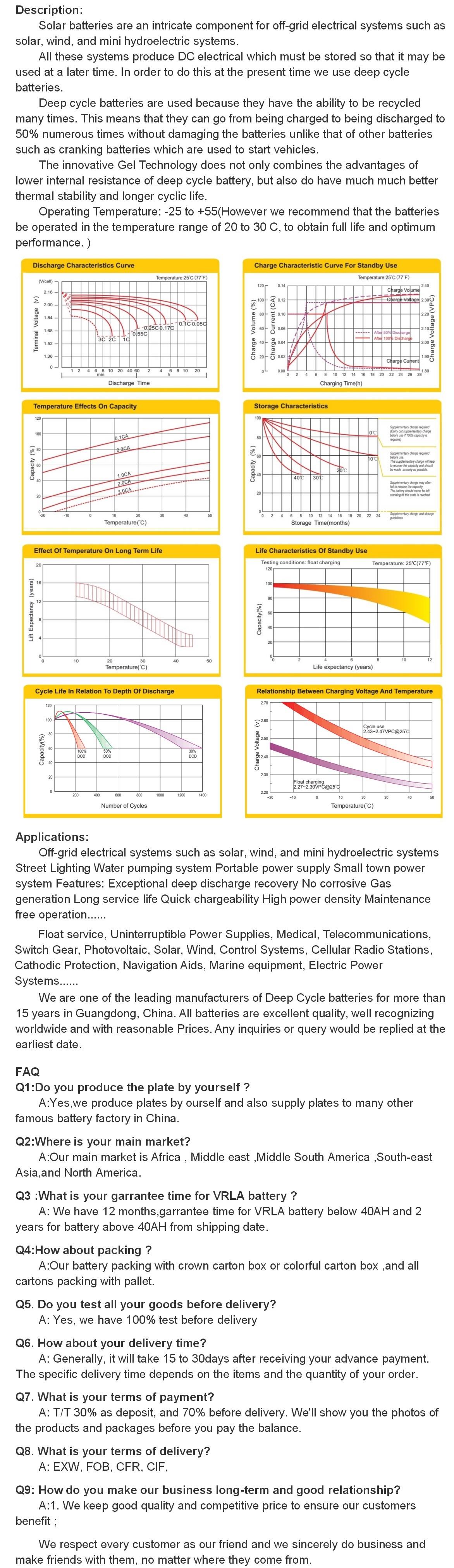

date 1.jpg

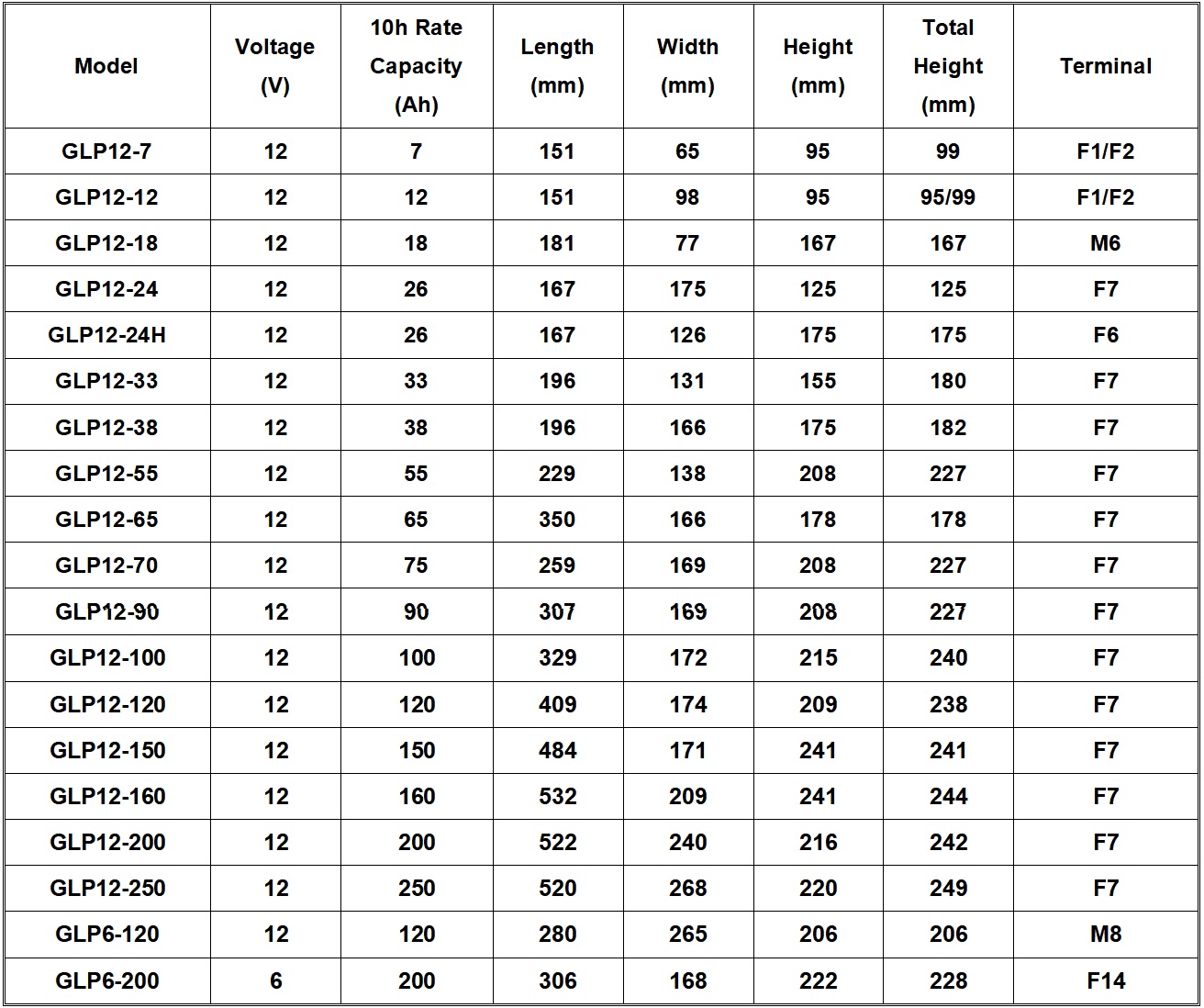

6V, & 12V Series

6V & 12V Series.jpg
