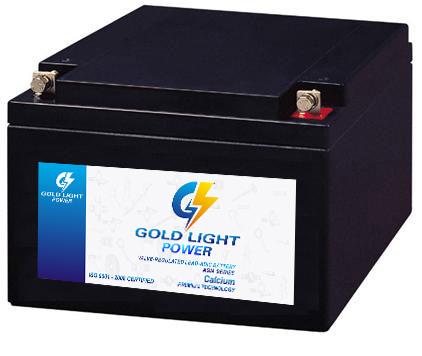

High Quality Battery 12V24AH EPS Battery For Fire Safety Power Protection Serious Computing Systems Hospital Power Emergency Power Supply

Name: High Quality Battery 12V24AH EPS Battery For Fire Safety Power Protection Serious Computing Systems Hospital Power Emergency Power Supply Manufacturers and Suppliers - Factory Wholesale - Gold Light Power
Brand: Gold Light Power
SKU: 27284321

Basic Info Model NO.: 12V24AH Usage: UPS, Electric Power, Lighting, Electric Bicycle, Boat Discharge Rate: High Discharge Rate Electrolyte: Acid Rechargeable: Chargeable Brand Name: GOLD LIGHT POWER Advantage 1: High Capacity, Good Quality Productong Lead-Time: 15~30 Days After Deposit...

Send Inquiry

Description

Basic Info

Model NO.: 12V24AH

Usage: UPS, Electric Power, Lighting, Electric Bicycle, Boat

Discharge Rate: High Discharge Rate

Electrolyte: Acid

Rechargeable: Chargeable

Brand Name: GOLD LIGHT POWER

Advantage 1: High Capacity, Good Quality

Production Lead-Time: 15~30 Days After Deposit

Trademark: GOLD LIGHT POWER

Origin: Guangdon, China(Mainland)

Type: Lead-Acid Batteries

Nominal Voltage: 12V

Shape: Square Battery

Installation: Fixed

Color: Any Color The Customer Needs

Quality Standard: ISO9000, CE, RoHS, MSDS, Soncap, Coc/Voc, IEC Test

Advantage 2: High Performance, with Low Price

Packing Quantity: 1PCS/Box

Specification: CE\RoHS\COC\VOC\SONCAP

HS Code: 8507200000

Product Description

CE Approve AGM vrla Battery 12V 24ah

High Quality Battery 12V24AH EPS Battery For Fire Safety Power Protection Serious Computing Systems Hospital Power Emergency Power Supply

SPECIFICATIONS

Cells Per Unit	6
Voltage Per Unit	12
Capacity	12V24AH@10hr-rate to 1.80V per cell @25ºC
Operating Temperature Range	Discharge: -20 ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Normal Operating Temperature Range	25ºC±5ºC
Float charging Voltage	13.6 to 13.8 VDC/unit Average at 25ºC
Equalization and Cycle Service	14.6 to 14.8 VDC/unit Average at 25ºC
Self Discharge	Batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Container Material	A.B.S. UL94-HB, UL94-V0 Optional.

12 years float life at 20°C
Up to 5 years design life at renewable energy applications according to IEC61427
Wide operating temperature range from -15°C to 60°C
Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Round trip efficiency as high as 85%.
Thick positive flat plate design with high Tin low Calcium alloy and high density paste
Low self-discharge rate and long shelf life (9 months at 25°C)
Excellent deep discharge recovery capability

Positive plate -Thick high Sn low Ca grid with high density paste
Negative plate-Over designed capacity to overcome sulphation at low SOC
Separator-Advanced AGM separator
Electrolyte - Dilute high purity sulphuric acid with nano gel
Battery container and cover-ABS
Pillar seal -100% factory tested, proven two layers epoxy resin seal
Relief valve- Complete with integrated flame arrestor
